Reference Standards:
IMO MSC/Circ.1165 as amended
Rules for Testing and Certification of Marine Materials and Equipment
IMO IGC Code-Chapter 11.3
IMO IGF Code-Chapter 11.5
Solas 74 Reg.II-2/10.6.3.1.3,
Solas 74 Reg.II-2/19.3.1.3
Application:

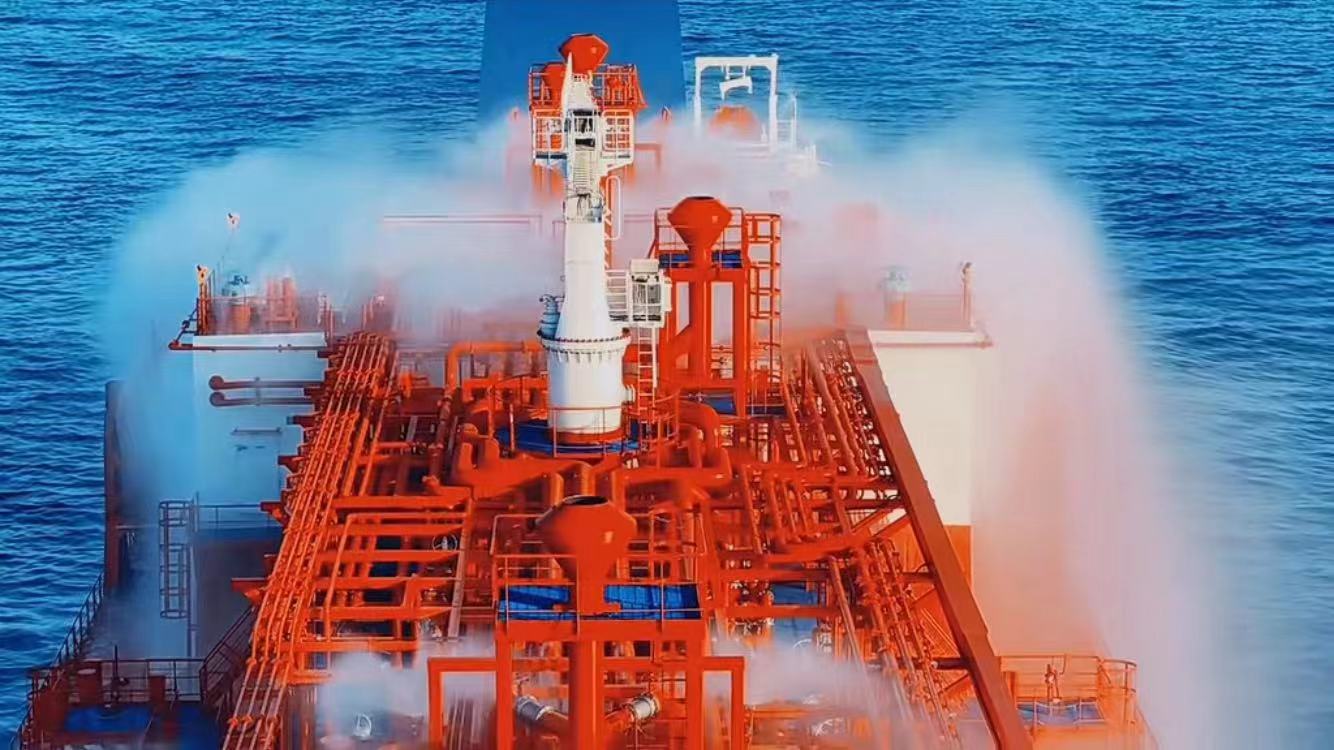

LNG tank Cooling and Fire / Fuel tank Cooling and Fire
Hatch Cover Spray
Paint Store Fire
Deck Cooling Cooling and Fire
Approval: ABS/RINA/CCS
|
TYPE |
K FACTOR METRIC |
K FACTOR US |
CONECTION (MALE THREAD) |
SPRAY ANGLE |
|

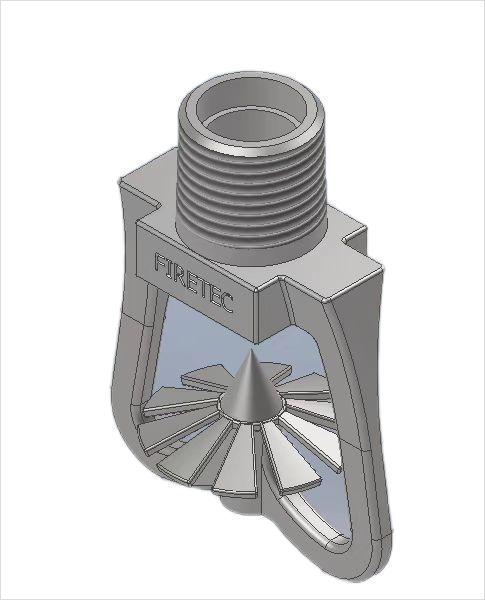

FTCM-K-19 |
19 |
1.31 |
BSPT1/2” |
60° 80° 100° 120° 140° 160° |
|
FTCM-K-27 |
27 |
1.86 |
BSPT1/2” |
|
|
FTCM-K-33 |
33 |
2.27 |
BSPT1/2” |
|
|
FTCM-K-42 |
42 |
2.89 |
BSPT1/2” |
|
|
FTCM-K-61 |
61 |
4.20 |
BSPT1/2” |
|
|
FTCM-K-80 |
80 |
5.60 |
BSPT1/2” |
|
|
FTCM-K-98 |
98 |
6.75 |
BSPT1/2” |
|
|
FTCM-K-109 |
109 |
7.54 |
BSPT1/2” |
|
|
FTCM-K-120 |
120 |
8.30 |
BSPT1/2” |
|
TYPE |
K FACTOR METRIC |
K FACTOR US |
CONECTION (MALE THREAD) |
|

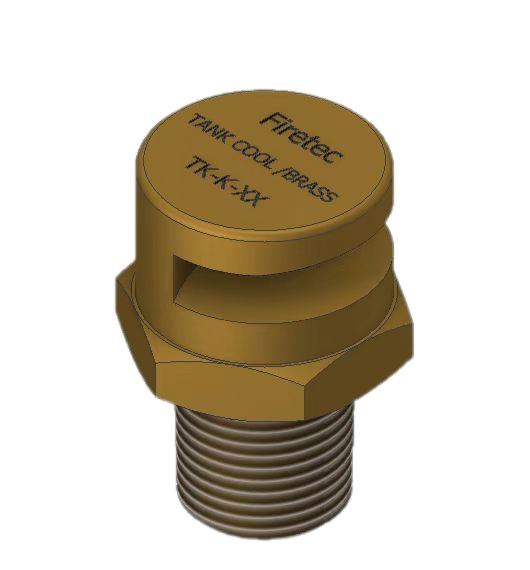

TN-K-7 |
7 |
0.48 |
BSPT1/2” |
|
TN-K-25 |
25 |
1.74 |
BSPT1/2” |
|
TN-K-29 |
29 |
2.02 |
BSPT1/2” |
|
TN-K-45 |
45 |
3.13 |
BSPT1/2” |
|
TN-K-48 |
48 |
3.34 |
BSPT1/2” |
|
TN-K-60 |
60 |
4.14 |
BSPT1/2” |
|
TN-K-70 |
70 |
4.82 |
BSPT1/2” |
|
TN-K-77 |
77 |
5.31 |
BSPT1/2” |
|
TN-K-85 |
85 |
5.86 |
BSPT1/2” |
